Nova^® 90° Short Flat Offset Angle Head

Accepts 1/4-28 Threaded Angle Bits or 1/4" Insert Bits
Capacity: 1/4"
Rear Exhaust
Angle Head may be rotated 360° for superior operator control
Air Inlet 1/4-18 NPT
Motor housing milled from solid bar for precision motor alignment
Motor cylinder and rotor are hardened alloy steel to ensure proper alignment and long life
Smooth quiet operation
One Year Warranty
Excellent for tight applications in drilling, screw installation and removal applications
Scroll down to purchase the individual head or a complete Nova tool

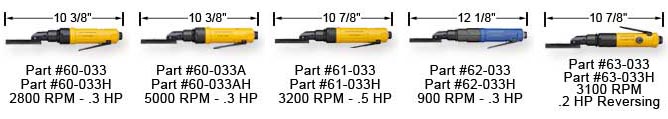

Description	Part Number	RPM	In. - Lbs. Torque	Weight	Price Each
Nova 90° Short Flat Offset Angle Head - 1/4-28 Spindle Gear	90-011	-	-	.8 Lbs.	$282.00
Nova 90° Short Flat Offset Angle Head with .3 Horsepower Motor - 1/4-28 Spindle Gear	62-033	900	52	2.02 Lbs.	$505.00
Nova 90° Short Flat Offset Angle Head with .3 Horsepower Motor - 1/4-28 Spindle Gear	60-033	2800	25	1.8 Lbs.	$441.00
Nova 90° Short Flat Offset Angle Head with .3 Horsepower Motor - 1/4-28 Spindle Gear	60-033A	5000	22	1.8 Lbs.	$441.00
Nova 90° Short Flat Offset Angle Head with .5 Horsepower Motor - 1/4-28 Spindle Gear	61-033	3200	35	2.1 Lbs.	$470.00
Nova 90° Short Flat Offset Angle Head with .2 Horsepower Reversing Motor - 1/4-28 Spindle Gear	63-033	3100	22	2.1 Lbs.	$485.00

1/4 Inch Hex Drive

Description	Part Number	RPM	In. - Lbs. Torque	Weight	Price Each
Nova 90° Short Flat Offset Angle Head - Hex Drive	90-011H	-	-	.8 Lbs.	$274.00
Nova 90° Short Flat Offset Angle Head with .3 Horsepower Motor - Hex Drive	62-033H	900	52	2.02 Lbs.	$505.00
Nova 90° Short Flat Offset Angle Head with .3 Horsepower Motor - Hex Drive	60-033H	2800	25	1.8 Lbs.	$441.00
Nova 90° Short Flat Offset Angle Head with .3 Horsepower Motor - Hex Drive	60-033AH	5000	22	1.8 Lbs.	$441.00
Nova 90° Short Flat Offset Angle Head with .5 Horsepower Motor - Hex Drive	61-033H	3200	35	2.1 Lbs.	$470.00
Nova 90° Short Flat Offset Angle Head with .2 Horsepower Reversing Motor - Hex Drive	63-033H	3100	22	2.1 Lbs.	$485.00
