Nova^® Long Reach Flat Offset Head

Accepts 1/4-28 Threaded Angle Bits or 1/4" Insert Bits
Capacity: 1/4"
Rear Exhaust
Angle Head may be rotated 360° for superior operator control
Air Inlet 1/4-18 NPT
Heavy duty bottom plate adds rigidity and stability
Motor housing milled from solid bar for precision motor alignment
Motor cylinder and rotor are hardened alloy steel to ensure proper alignment and long life
Smooth quiet operation
One Year Warranty
Used for offset applications in hard to reach places for both drilling and
screw installation and removal
Reversing function accommodates backdrilling
Scroll down to purchase complete Nova tool

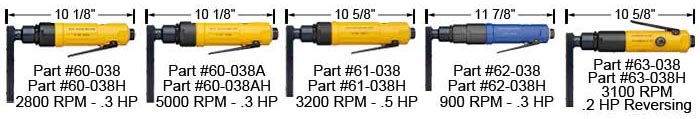

Description	Part Number	RPM	In. - Lbs. Torque	Weight	Price Each
Nova Long Reach Flat Offset Head -1/4-28 Threaded Spindle Gear	90-040	-	-	.8 Lb.	$314.00
Nova Long Reach Offset Head with .3 Horsepower Motor - 1/4-28 Threaded Spindle Gear	60-038	2800	25	1.8 Lbs.	$473.00
Nova Long Reach Offset Head with .3 Horsepower Motor - 1/4-28 Threaded Spindle Gear	60-038A	5000	22	1.8 Lbs.	$473.00
Nova Long Reach Offset Head with .5 Horsepower Motor - 1/4-28 Threaded Spindle Gear	61-038	3200	35	2.1 Lbs.	$501.00
Nova Long Reach Offset Head with .3 Horsepower Motor - 1/4-28 Threaded Spindle Gear	62-038	900	52	2.02 Lbs.	$536.00
Nova^® Long Reach Offset Head with .2 Horsepower Reversing Motor - 1/4-28 Threaded Spindle Gear	63-038	3100	22	2.1 Lbs.	$750.00

Description	Part Number	RPM	In. - Lbs. Torque	Weight	Price Each
Nova Long Reach Flat Offset Head - Hex Drive	90-040H	-	-	.8 Lb.	$305.00
Nova Long Reach Offset Head with .3 Horsepower Motor - Hex Drive	60-038H	2800	25	1.8 Lbs.	$473.00
Nova Long Reach Offset Head with .3 Horsepower Motor - Hex Drive	60-038AH	5000	22	1.8 Lbs.	$473.00
Nova Long Reach Offset Head with .5 Horsepower Motor - Hex Drive	61-038H	3200	35	2.1 Lbs.	$501.00
Nova Long Reach Offset Head with .3 Horsepower Motor - Hex Drive	62-038H	900	52	2.02 Lbs.	$536.00
Nova Long Reach Offset Head with .2 Horsepower Reversing Motor - Hex Drive	63-038H	3100	22	2.1 Lbs.	$750.00
